Description
Discover the superior performance and lasting value of the AMFCO 24.625″×28.875″×1.750″ Exact Aluminum Foil Mesh Air Filter. Manufactured with precision by American Metal Filter Company (AMFCO) in the USA, this robust filter is engineered to deliver reliable air filtration in a wide array of residential, commercial, and industrial HVAC applications.

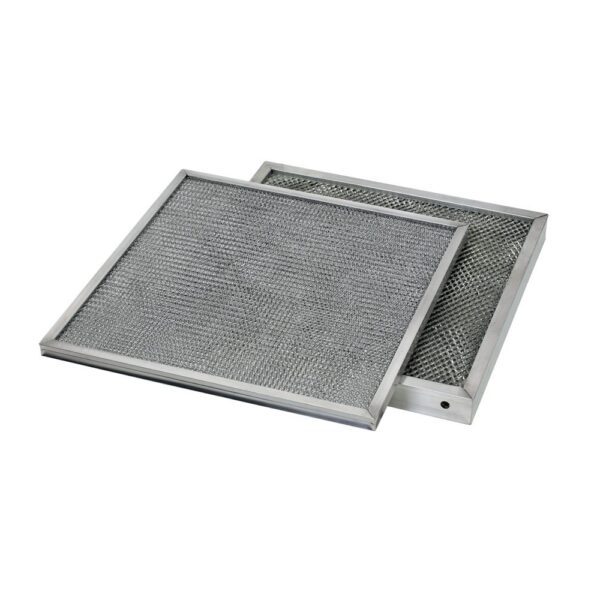

This impingement-type washable panel filter features a durable aluminum frame enclosing multiple layers of expanded aluminum foil media. Its innovative design effectively captures airborne particulate and coolant mist, protecting your HVAC equipment and improving indoor air quality. Unlike disposable filters, the AMFCO HX Series is designed for repeated cleaning and reuse, offering a sustainable and cost-effective filtration solution.
With its exact dimensions of 24.625″ length, 28.875″ width, and 1.750″ height, this filter ensures a precise fit, preventing air bypass and maximizing filtration efficiency. Choose AMFCO for American-made quality, durability, and exceptional air filtration performance.
What Is the AMFCO 24.625″×28.875″×1.750″ Exact Aluminum Foil Mesh Air Filter?
The AMFCO 24.625″×28.875″×1.750″ Exact Aluminum Foil Mesh Air Filter is a high-performance, impingement-type washable panel filter designed for demanding HVAC environments. It utilizes a unique progressive-density media pack consisting of multiple layers of aluminum foil, precisely slit and expanded. This design ensures that larger airborne contaminants are trapped at the air entrance, while progressively smaller particles are captured deeper within the filter’s 7-ply media, achieving an average dust arrestance of 53% at a rated airflow of 350 FPM.
This filter excels in applications requiring robust, reusable filtration, such as residential central air conditioners, commercial HVAC systems, and industrial ventilation where coolant mist or heavy particulate is present. Its durable construction and washable nature offer a significant advantage over disposable filters, providing long-term cost savings and reducing environmental waste without compromising filtration effectiveness.
Key Benefits of the AMFCO Aluminum Foil Mesh Air Filter
- Exceptional Durability: Constructed with a sturdy aluminum frame and media, ensuring a long service life even in challenging conditions.
- Fully Washable & Reusable: Easily cleaned with water, eliminating the need for frequent replacements and offering significant cost savings over time.
- Progressive-Density Filtration: Multiple layers of expanded aluminum foil media trap contaminants throughout the filter depth, maximizing dust holding capacity (97 grams per square foot).
- Optimal Airflow: Designed for low resistance (final resistance 0.50 inches W.G. before cleaning) to maintain efficient system operation at a rated airflow of 350 FPM.
- Made in USA Quality: Manufactured by American Metal Filter Company (AMFCO), guaranteeing high standards of craftsmanship and reliability.
Technical Specifications
Below are the detailed technical specifications for the AMFCO 24.625″×28.875″×1.750″ Exact Aluminum Foil Mesh Air Filter, ensuring you have all the necessary information for proper application and performance assessment.
| Specification | Value |
|---|---|
| Filter Type | Impingement-type washable panel filter |
| MERV Rating | Not applicable (Impingement type) |
| Frame Material | .030″ thick aluminum |
| Frame Construction | Mitered corners, pop-rivet(s), drain holes |
| Media Material | Multiple layers of expanded aluminum foil |
| Actual Depth | 1-3/4 inches (1.750″) |
| Face Dimensions (L×W) | 24.625″ × 28.875″ |
| Ply Count | 7 |
| Max Operating Temperature | 275°F |
| Rated Airflow | 350 FPM |
| Final Resistance | 0.50 inches W.G. before cleaning |
| Dust Arrestance | 53% average at 350 FPM |
| Dust Holding Capacity | 97 grams per square foot |
| Washability | Yes, fully washable |
| UL Classification | Not applicable |
| Country of Origin | USA |
| GTIN (UPC) | 00840373526291 (840373526291) |
Size Reference for AMFCO HX Series Filters
Accurate filter sizing is paramount for optimal system performance and to prevent air bypass. This AMFCO HX Series Aluminum Foil Mesh Air Filter is manufactured to exact dimensions, ensuring a precise fit for your equipment. Always measure your existing filter or filter slot to confirm compatibility with these exact measurements.
| Dimension Type | Value |
|---|---|
| Nominal Size (Approximate) | 25″ × 29″ × 2″ |
| Actual Length | 24.625″ |
| Actual Width | 28.875″ |
| Actual Height (Depth) | 1.750″ |
Versatile Applications for Aluminum Foil Mesh Air Filters
The AMFCO 24.625″×28.875″×1.750″ Exact Aluminum Foil Mesh Air Filter is a highly adaptable solution, suitable for a broad spectrum of air filtration needs across various sectors. Its robust construction and washable design make it an excellent choice for environments demanding durable and reusable filtration.
| Application | Why This Filter | Key Requirement |
|---|---|---|
| Commercial HVAC Systems | Effectively captures airborne particulate, dust, and light mist, protecting coils and improving indoor air quality. | Durable, washable, low resistance for high airflow, long service life. |
| Industrial Ventilation | Withstands harsh industrial environments, removing oil mist, coolant mist, and larger airborne debris from exhaust and intake systems. | Robust construction, reusability, high dust holding capacity, resistance to moisture. |
| Outdoor Air Intake Ducts | Serves as a primary barrier against leaves, insects, coarse dust, and other large foreign objects entering HVAC units. | Weather-resistant, easy to clean, maintains consistent airflow, protects downstream filters. |
| Rooftop Economizer Hoods | Prevents the ingress of environmental debris into rooftop units, ensuring clean air supply and protecting internal components. | Effective pre-filtration, durable against outdoor elements, low pressure drop. |
| Electronic Air Cleaners (Pre-filter) | Extends the lifespan and efficiency of electrostatic cells by removing larger particles before they reach the finer filtration stages. | Washable, effective pre-filtration, compatible with existing filtration setups. |
| Central Air Conditioners | Protects evaporator coils and internal components from dust buildup, maintaining system efficiency and reducing maintenance. | Reliable particulate filtration, maintains system airflow, washable for sustained performance. |
| Computer Environment Systems | Filters dust and debris to protect sensitive electronic equipment from overheating and malfunction. | Consistent airflow, effective particulate removal, reusability for critical systems. |
| Wall Heaters & Room Air Conditioners | Improves indoor air quality in localized settings and protects appliance components from dust accumulation. | Compact, efficient, easy to maintain, enhances appliance longevity. |
How This AMFCO HX Series Filter Is Constructed
The AMFCO 24.625″×28.875″×1.750″ Exact Aluminum Foil Mesh Air Filter is meticulously engineered for durability and effective filtration. Each component is selected and assembled to ensure long-lasting performance and ease of maintenance.
Robust Aluminum Frame
The filter’s structural integrity is provided by a durable .030″ thick aluminum frame. This robust frame is designed to withstand the rigors of continuous operation and repeated cleaning cycles without warping or degradation. The frame features mitered corners, precisely cut and joined, then secured with pop-rivet(s) to create a strong, rigid enclosure for the media pack. Crucially, drain holes are strategically placed in three corners of the frame. These holes facilitate efficient water drainage during the cleaning process, preventing water accumulation and ensuring the filter dries thoroughly and quickly before reinstallation.
Progressive-Density Aluminum Foil Media
At the heart of this AMFCO filter is its advanced media pack, composed of multiple layers of high-quality aluminum foil. This foil is specially slit and expanded to create a progressive-density structure. The layers are arranged with larger openings at the air entrance side, gradually transitioning to smaller openings towards the air exit. This innovative 7-ply design ensures that airborne contaminants are trapped throughout the entire depth of the filter, rather than just on the surface. This maximizes the filter’s dust holding capacity, rated at 97 grams per square foot, and extends the time between cleanings, making it highly efficient for capturing both coarse and finer particulate matter, as well as coolant mist.
Installation Instructions for Your AMFCO Air Filter
Proper installation of your AMFCO 24.625″×28.875″×1.750″ Exact Aluminum Foil Mesh Air Filter is crucial for maximizing its performance and ensuring the longevity of your HVAC system. Follow these guidelines for a secure and effective setup.
Before Installing
- Safety First: Always turn off the power to your HVAC system, furnace, or appliance before attempting to remove or install air filters.
- Inspect Filter: Before installation, visually inspect your new AMFCO filter to ensure it is clean, dry, and free from any shipping damage.
- Confirm Dimensions: Double-check the exact dimensions of your filter slot against the filter’s actual measurements (24.625″×28.875″×1.750″) to ensure a perfect, snug fit.
- Clear Area: Ensure the area around the filter housing is clear of obstructions for easy access.
Installation Steps
- Locate the filter access panel or return air grille in your HVAC system, furnace, or the specific appliance where the filter is to be installed.
- If replacing an existing filter, carefully slide out the old filter. Note its orientation and dispose of any accumulated debris responsibly.
- Gently slide the new AMFCO 24.625″×28.875″×1.750″ Exact Aluminum Foil Mesh Air Filter into the designated filter slot or rack.
- Ensure the filter is fully seated and flush within the housing. There should be no gaps around the edges that could allow unfiltered air to bypass the filter media.
- Close and secure the filter access panel or reattach the return air grille, ensuring all latches or screws are tightened.
- Restore power to your HVAC system or appliance.
- Perform a quick system check to ensure normal operation and airflow.
Notes by System Type
- Furnaces & Air Handlers: Filters are typically installed in a dedicated filter rack located before the blower fan. Ensure the filter slides smoothly into the rails.
- Return Air Grilles: For filters integrated into return air grilles, ensure the grille cover is securely fastened after the filter is in place.
- Appliance-Specific Installations: For room air conditioners, wall heaters, or other appliances, consult the appliance manufacturer’s manual for specific filter access and installation instructions.
Cleaning and Maintenance for Your Washable AMFCO Filter
The AMFCO 24.625″×28.875″×1.750″ Exact Aluminum Foil Mesh Air Filter is designed for easy cleaning and repeated use, offering a sustainable and economical filtration solution. Regular maintenance ensures optimal performance and extends the life of your HVAC system.
Washing Procedure
- Remove Filter: Turn off your HVAC system or appliance. Carefully remove the dirty filter from its housing.
- Initial Rinse: Using a strong stream of water (e.g., from a garden hose or utility sink sprayer), rinse the filter thoroughly. Begin rinsing from the air-exit side to push trapped contaminants out through the larger openings on the air-entrance side.
- Apply Detergent (Optional): For stubborn dirt, grease, or heavy particulate buildup, apply a mild household detergent (such as dish soap) to both sides of the filter. Allow it to soak for 5–10 minutes.
- Gentle Scrub: If necessary, gently scrub the filter media with a soft brush to dislodge embedded dirt. Avoid abrasive brushes or excessive force that could damage the aluminum foil mesh.
- Final Rinse: Rinse the filter completely until all soap residue and loosened dirt are gone. Ensure water drains freely from the frame’s drain holes.
- Air Dry Completely: Shake off excess water and allow the filter to air dry thoroughly before reinstallation. Place it in a well-ventilated area, or use a fan to expedite drying. Do NOT use heat sources like ovens or direct sunlight, as this can damage the filter.
What NOT To Do
- Do NOT use harsh chemicals: Avoid strong acids, bases, bleach, or abrasive cleaners, which can corrode or damage the aluminum frame and media.
- Do NOT use high-pressure washers: Excessive water pressure can deform the delicate aluminum foil mesh, impairing its filtration efficiency.
- Do NOT re-install wet: Reinstalling a wet filter can restrict airflow, promote mold or mildew growth, and potentially damage your HVAC system.
- Do NOT bend or force: Handle the filter carefully to prevent bending the frame or crushing the media, which can create bypass channels for unfiltered air.
Cleaning Frequency Guide
- Residential Use: Typically every 1–3 months, depending on factors like pet ownership, number of occupants, and local air quality.
- Commercial Use: Generally every 2–4 weeks, or as indicated by system performance, air quality monitoring, or maintenance schedules.
- Industrial/High Dust Environments: Weekly or bi-weekly cleaning may be necessary, especially in applications with heavy dust loads, coolant mist, or grease accumulation.
Frequently Asked Questions
What is an AMFCO 24.625″×28.875″×1.750″ Exact Aluminum Foil Mesh Air Filter?
This is a high-quality, washable impingement-type panel filter manufactured by American Metal Filter Company (AMFCO) in the USA. It features multiple layers of expanded aluminum foil media within a durable aluminum frame, designed to effectively capture airborne particulate and coolant mist in various residential, commercial, and industrial HVAC applications.
What is the difference between nominal and actual dimensions for this filter?
Nominal dimensions are rounded, approximate sizes (e.g., 25″×29″×2″) commonly used for general identification. Actual dimensions are the precise measurements of the filter (24.625″×28.875″×1.750″), which are critical for ensuring a perfect, airtight fit in your system’s filter slot.
Does this filter have a specific installation direction?
The AMFCO HX Series aluminum foil mesh filter is an impingement-type filter with a progressive-density media design. This construction allows for effective filtration regardless of airflow direction, meaning there are typically no specific airflow arrows, offering flexible installation.
How should I clean this washable aluminum filter?
To clean, remove the filter and rinse it thoroughly with a strong stream of water, starting from the air-exit side. For heavy buildup, use a mild detergent and a soft brush. Rinse completely until all soap is gone, and allow it to air dry fully before reinstallation. Do not use harsh chemicals or high-pressure washers.
How often should I clean my AMFCO aluminum air filter?
Cleaning frequency depends on the application and environment. For residential use, every 1–3 months is typical. Commercial and industrial settings may require cleaning every 2–4 weeks, or even weekly, especially in high-dust or mist-laden environments.
What is the maximum operating temperature for this filter?
This AMFCO aluminum foil mesh air filter is designed to withstand continuous operating temperatures up to 275°F, making it suitable for a wide range of HVAC and industrial applications where elevated temperatures may be present.
What are the best applications for this type of filter?
This filter is ideal for residential, commercial, and industrial HVAC systems, including central air conditioners, furnaces, outdoor air intakes, rooftop economizer hoods, and industrial ventilation. It excels at removing airborne particulate, dust, and coolant mist, protecting equipment and improving air quality.
Are custom sizes available for AMFCO aluminum foil mesh filters?
Yes, American Metal Filter Company (AMFCO) specializes in manufacturing high-quality metal filters and offers custom sizing options for their aluminum foil mesh filters to meet specific application requirements. Please contact us directly for custom order inquiries.
